ESHX338I-B30MCU is 3.5 inch bar type TFT display 180X640 resolution, 16pins MCU. brightness is 300cd/m2 and view angle is free and Module Driver IC is AXS15230
A:Product Parameter
| Part NO. | ESHX338I-B30MCU |
| Panel size | 3.4 inch bar type TFT |
| Resolution | 180X640 |
| Viewing Angle | All View |
| Operation Temperature | -10~70 |
| Panel Size(mm) | 25.7X88X2.1 |
| Active Area (mm) | 25.7X83.8X2.1 |
| Backlight | white 25pcs LED |
| Brightness(cd/m2) | 300CD/M2 |
| Interface | 16pins MCU |
| drive IC | AXS15230 |
| TOUCH PANEL | INCELL with OCA |

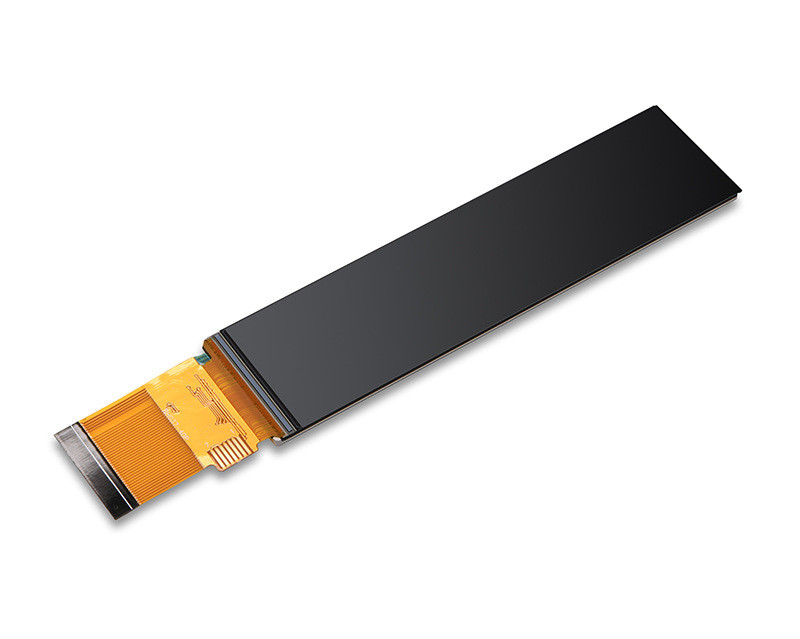

B:Product Picture
